For Water

Product Summary

Main Uses

  • Removing oxygen and carbon dioxide from ultrapure water
  • Removing oxygen from water in boiler piping
  • Manufacturing functional water for cleaning (dissolving CO2 gas, H2 gas, N2 gas, and O2 gas)
    ※Please use eFLOW for Aerating CO2 gas.
  • Defoaming processing of the water for ultrasonic washing machines

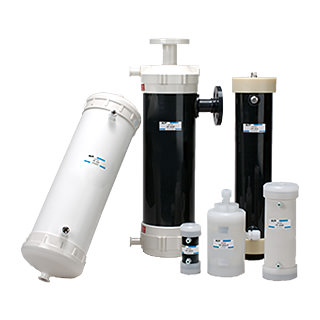

SEPAREL Models for Water

PF Series

Internal Flow System

  • Fluid directed through inside of hollow fiber

【Features】

  • Washable by making liquid flow backwards
  • Image
  • Movie of Internal Perfusion
Model Supported
Flow Rate
Dimensions Pressure
Resistance
Operating
Temp.
Connection
ml/min L/hr mm MPa Liquid Vacuum
PF-001D 10 - 1,000 0.6 - 60 60φ×140 0.3 2 - 40 Rc 1/4 or NPT 1/4 Φ6 tube
PF-004D 50 - 3,000 3 - 180 99φ×260 0.3 2 - 40 Rc 3/8 Φ6 tube
PF-015 800 - 8,000 50 - 500 140φ×530 0.3 2 - 40 Rp 1/2 Rp 1/2
PF-030 1,700 - 17,000 100 - 1,000 180φ×615 0.3 2 - 40

ISO 15A
ferrule

Φ10 tube

EF Series(Small)

External Flow System(Small)

  • Fluid directed outside of hollow fiber

【Features】

  • Low pressure loss
  • High-level degassing model
  • Image
  • Movie of External Perfusion
Model Supported
Flow Rate
Dimensions Pressure
Resistance
Operating
Temp.
Connection
ml/min L/hr mm MPa Liquid Vacuum
EF-MICRO 0.5 - 10 0.03-0.6 22φ×94 0.2 2 - 40 Luer Luer
EF-G2 1 - 60 0.06-3.6 26φ×115 0.2 2 - 40 Rc 1/8 or NPT 1/8 Rc 1/8 or NPT 1/8
EF-G3 5 - 300 0.3-18 43φ×131 0.2 2 - 40 Rc 1/8 or NPT 1/8 Rc 1/8 or NPT 1/8
EF-G5 10 - 1,500 0.6 - 90 60φ×140 0.2 2 - 40 Rc 1/4 or NPT 1/4 Rc 1/4 or NPT 1/4

EF Series

External Flow System

  • Fluid directed outside of hollow fiber

【Features】

  • Low pressure loss
  • High-level degassing model
  • Image
  • Movie of External Perfusion
Model Supported Flow Rate Dimensions Pressure
Resistance
Operating
Temp.
Connection
L/hr mm MPa Liquid Vacuum
EF-002A 6 - 300 109φ×182 0.3 2 - 40 Rc 3/8 Rp 1/4
EF-002A-P 6 - 300 109φ×240 0.3 2 - 40 Supper pillar 1/2 Rp 1/4
EF-010G 6 - 600 170φ×430 0.5 2 - 40 Rc 1 Rc 1/2
EF-020G 6 - 1,200 170φ×680 0.5 2 - 40 Rc 1 Rc 1/2
EF-010 100 - 1,500 170φ×430 0.5 2 - 40 Rc 1 Rc 1/2
EF-020 300 - 3,000 170φ×680 0.5 2 - 40 Rc 1 Rc 1/2
EF-040P 500 - 5,000 180φ×673 0.6 2 - 50 JIS10K 25A flange ISO 15A ferrule
EF-120 3,000 - 500,000 315φ×850 0.6 5 - 40 JIS10K 80A flange Rc 1
About Connection:
It is possible to change a joint for a pillar, flange, etc. However, there are limitations for some products. Please inquire about specific products.
About Flow Rate:
They are just guidelines. Depending on liquid type and targeted degassing levels, you can use them beyond the guidelines.
About Dimensions:
Projected parts and connections are excluded. For details, please refer to product drawings.
