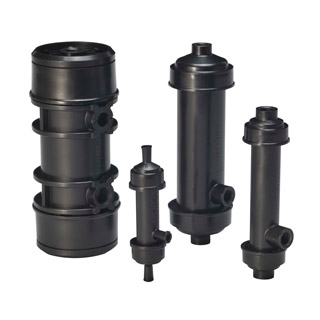

For InkJet Inks
【Features】
- Optimal structure for degasification and aeration (DIC's Hollow Fiber Membrane)
- A broad lineup suited to various ink types and applications
- Low pressure losses and space savings are created by the proprietary internal structure.

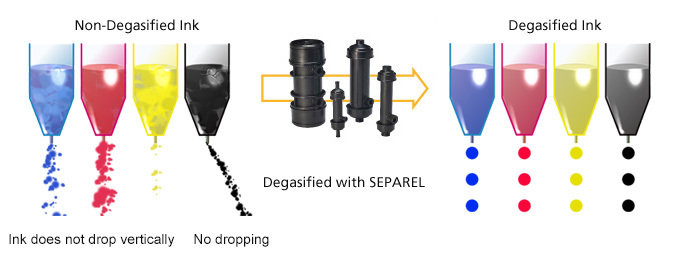

Gases dissolved in the ink transform into bubbles after repeated compression and decompression given by piezo elements or by heating.
As a result,
- The pressure from piezo elements is degraded by the bubbles and the ink cannot drop vertically.
- The bubbles block the injection nozzles and the ink cannot drop at all.
PF Series
Internal Flow System
- Fluid directed through inside of hollow fibe
【Features】
- Washable by making liquid flow backwards
| Model | Supported Flow Rate | Dimensions | Pressure Resistance | Operating Temp. | Connection （Liquid） |
Connection （Vacuum） |
|---|---|---|---|---|---|---|
| PF-001D | 0.6～60L／h | 60mmφ×140mmL （2.4inφ×5.5in） |
0.3MPa （3bar, 43.5psi） |
5～40℃ （41～104°F） |
Rc1／4 NPT1/4 |
φ6 tube |
| PF-004D | 3～180L／h | 99mmφ×260mmL （3.9inφ×10.4in） |
Rc3／8 | φ6 tube |
EF Series（Small）
External Flow System(Small）
- Fluid directed outside of hollow fiber
【Features】
- Low pressure loss
- High-level degassing model
| Model | Flow Rate （Vacuum degree 2.7kPa） |
Dimensions | Pressure Resistance | Operating Temp. | Connection （Liquid） |
Connection （Vacuum） |
|
|---|---|---|---|---|---|---|---|
| Degassing Rate 80％ | Degassing Rate 50％ | ||||||
| EF-AG1SX | 6mL/min | 40mL/min | 68mm×φ24mm （2.68in×0.94in） |
0.2MPa （2bar, 29psi） |
5～45℃ （41～113°F） |
Lure fitting | Lure fitting |
| EF-MICRO EF-MICROX |
9mL/min | 60mL/min | 91mm×φ23.5mm （3.58in×φ0.93in） | Lure fitting | Lure fitting | ||
| EF-G2 EF-G2X |
50mL/min | 170mL/min | 115mm×φ30mm （4.53in×φ1.18in） |
Rc1/8 NPT1/8 female |
Rc1/8 NPT1/8 female |
||
| EF-AG2 EF-AG2X |
50mL/min | 170mL/min | 122mm×φ29mm （4.80in×φ1.14in） |
Lure fitting | Lure fitting | ||
| EF-G3 EF-G3X |
500mL/min | 1,200mL/min | 141mm×φ45mm （5.55in×φ1.77in） |
Rc1/8 NPT1/8 female |
Rc1/8 NPT1/8 female |
||
| EF-AG3 EF-AG3X |
500mL/min | 1,200mL/min | 159mm×φ42mm （6.25in×φ1.65in） |
Rc1/8 NPT1/8 female |
Rc1/8 NPT1/8 female |
||
| EF-G4 EF-G4X |
1,000mL/min | 2,000mL/min | 141mm×φ60mm （5.55in×φ2.36in） |
Rc1/4 NPT1/4 female |
Rc1/4 NPT1/4 female |
||
| EF-AG5 EF-AG5X |
1,000mL/min | 2,000mL/min | 151mm×φ54mm （5.94in×φ2.1in） |
Rc1/4 NPT1/4 female |
Rc1/4 NPT1/4 female |
||
EF Series
External Flow System
- Fluid directed outside of hollow fiber
【Features】
- Low pressure loss
- High-level degassing model
| Model | Supported Flow Rate | Dimensions | Pressure Resistance | Operating Temp. | Connection （Liquid） |
Connection （Vacuum） |
|---|---|---|---|---|---|---|
| EF-002A EF-002AX-P |
6～720L/h （0.03～3US gpm） |
109mmφ×182mmL （4.29inφ×7.17in） |
0.3MPa （3bar, 43.5psi） |
5～40℃ （41～104°F） |
Rc3/8 NPT3/8 female |
Rp1/4 |
| EF-010G | 100～4,000L/h （0.4～20US gpm） |
170mmφ×430.0mmL （6.7inφ×16.9in） |
0.5MPa （5bar, 72.5psi） |
Rc1 NPT1 female |
Rc1/2 NPT1/2 female |
|
| EF-020G | 300～7,000L/h （1～30US gpm） |
170mmφ×680.0mmL （6.7inφ×26.8in） |
Rc1 NPT1 female |
Rc1/2 NPT1/2 female |
- About Connection：
- It is possible to change a joint for a pillar, flange, etc. However, there are limitations for some products. Please inquire about specific products.
- About Flow Rate：
- They are just guidelines. Depending on liquid type and targeted degassing levels, you can use them beyond the guidelines.
- About Dimensions：
- Projected parts and connections are excluded. For details, please refer to product drawings.
