For Sufactants

Product Outline

【Features】

  • Degassing liquids containing surfactants
  • Abundant lineup (small types, low pressure loss types, etc.)
  • In-line degasification possible
  • Reduced footprint

【Main Uses】

  • Degassing liquids containing various surfactants (inks, coatings, etc.)


Model Lists

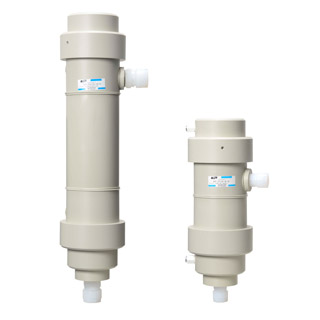

PF Series

Internal Flow System

  • Fluid directed through inside of hollow fiber

【Features】

  • Washable by making liquid flow backwards
  • Image
  • Movie of Internal Perfusion
Model Supported Flow Rate Dimensions Pressure Resistance Operating Temp. Connection
(Liquid)
Connection
(Vacuum)
PF-001D 0.6~60L/h 60mmφ×140mmL
(2.4inφ×5.5in)
0.3MPa
(3bar, 43.5psi)
5~40℃
(41~104°F)
Rc1/4
NPT1/4
φ6 tube
PF-004D 3~180L/h 99mmφ×260mmL
(3.9inφ×10.4in)
Rc3/8 φ6 tube

EF Series(Small)

External Flow System(Small)

  • Fluid directed outside of hollow fiber

【Features】

  • Low pressure loss
  • High-level degassing model
  • Image
  • Movie of External perfusion
Model Flow Rate(Vacuum degree 2.7kPa) Dimensions Pressure Resistance Operating Temp. Connection
(Liquid)
Connection
(Vacuum)
Degassing Rate 80% Degassing Rate 50%
EF-AG1SX 6mL/min 40mL/min 68mm×φ24mm
(2.68in×0.94in)
0.2MPa
(2bar, 29psi)
5~45℃
(41~113°F)
Lure fitting Lure fitting
EF-MICRO
EF-MICROX
9mL/min 60mL/min 91mm×φ23.5mm (3.58in×φ0.93in) Lure fitting Lure fitting
EF-G2
EF-G2X
50mL/min 170mL/min 115mm×φ30mm
(4.53in×φ1.18in)
Rc1/8
NPT1/8 female
Rc1/8
NPT1/8 female
EF-AG2
EF-AG2X
50mL/min 170mL/min 122mm×φ29mm
(4.80in×φ1.14in)
Lure fitting Lure fitting
EF-G3
EF-G3X
500mL/min 1,200mL/min 141mm×φ45mm
(5.55in×φ1.77in)
Rc1/8
NPT1/8 female
Rc1/8
NPT1/8 female
EF-AG3
EF-AG3X
500mL/min 1,200mL/min 159mm×φ42mm
(6.25in×φ1.65in)
Rc1/8
NPT1/8 female
Rc1/8
NPT1/8 female
EF-G4
EF-G4X
1,000mL/min 2,000mL/min 141mm×φ60mm
(5.55in×φ2.36in)
Rc1/4
NPT1/4 female
Rc1/4
NPT1/4 female
EF-AG5
EF-AG5X
1,000mL/min 2,000mL/min 151mm×φ54mm
(5.94in×φ2.1in)
Rc1/4
NPT1/4 female
Rc1/4
NPT1/4 female

EF series

External Flow System

  • Fluid directed outside of hollow fiber

【Features】

  • Low pressure loss
  • High-level degassing model
  • Image
  • Movie of External perfusion
Model Supported Flow Rate Dimensions Pressure Resistance Operating Temp. Connection
(Liquid)
Connection
(Vacuum)
EF-002A
EF-002AX-P
6~720L/h
(0.03~3US gpm)
109mmφ×182mmL
(4.29inφ×7.17in)
0.3MPa
(3bar, 43.5psi)
5~40℃
(41~104°F)
Rc3/8
NPT3/8 female
Rp1/4
EF-010G 100~4,000L/h
(0.4~20US gpm)
170mmφ×430.0mmL
(6.7inφ×16.9in)
0.5MPa
(5bar, 72.5psi)
Rc1
NPT1 female
Rc1/2
NPT1/2 female
EF-020G 300~7,000L/h
(1~30US gpm)
170mmφ×680.0mmL
(6.7inφ×26.8in)
Rc1
NPT1 female
Rc1/2
NPT1/2 female
About Connection:
It is possible to change a joint for a pillar, flange, etc. However, there are limitations for some products. Please inquire about specific products.
About Flow Rate:
They are just guidelines. Depending on liquid type and targeted degassing levels, you can use them beyond the guidelines.
About Dimensions:
Projected parts and connections are excluded. For details, please refer to product drawings.
